• Air conditioning, single-zone manual
• Assist handle, front passenger
• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers (Not available with (UM7) AM/FM stereo, (U1C) AM/FM stereo with CD player, (US8) AM/FM stereo with CD/MP3 player, (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation or (UL5) radio delete.)
• Defogger, side windows
• Floor covering, Black rubberized-vinyl front
• Headliner, cloth, over driver and passenger
• Heater and defogger with front and side window defoggers
• Lighting, interior with dome light and door handle-activated switches
• Oil life monitor
• Seating arrangement, driver and front passenger highback bucket includes head restraints and vinyl or cloth trim
• Seats, front bucket with vinyl trim and outboard head restraints includes inboard armrests (Requires (**W) trim. Not available with SEO (ZP0) delete driver and passenger seats.)
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Alternator, 145 amps
• Batteries, dual heavy-duty 770 cold-cranking amps maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• GVWR 14,200 lbs. (6441 kg) (Requires CG33803 or CG33903 models, (NE7) 57 gallon (215.7L) (approximate) fuel tank except when (B3D) Shuttle Bus Package is ordered, (GT4) 3.73 rear axle ratio, (XHF) front LT225/75R16E all-season blackwall tires and (YHF) rear LT225/75R16E all-season blackwall tires. In CA, CT, DE, GA, ME, NJ, NY, PA, and TX, GVWR will be reduced to (C8V) 13,980 (6341 kg) GVWR unless either (YF1) RV Package, (YF2) Ambulance Package, (B3D) School Bus Package or (ANC) Shuttle Bus Package is ordered.)
• Incomplete vehicle certification
• Rear Axle, 3.73 Ratio
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

• Air bag deactivation switch, frontal, passenger-side (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, frontal, driver and right-front passenger (Not available with (ZX1) driver only high-back bucket seat. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps

ENGINE, DURAMAX 6.6L V8 TURBO DIESEL

• (260 hp [193.9 kW] @ 3100 rpm
• 525 lb-ft of torque [708.7 N-m] @ 1600 rpm) with B20 Bio-Diesel capability (see owner's manual for details)

• ENGINE DURAMAX 6.6L V8 TURBO DIESEL (260 hp [193.9 kW] @ 3100 rpm 525 lb-ft of torque [708.7 N-m] @ 1600 rpm) with B20 Bio-Diesel capability (see owner's manual for details)
• Turbocharged
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Dual Rear Wheels
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Dual Rear Wheels
• Intermittent Wipers
• Bucket Seats
• A/C
• Vinyl Seats
• Bucket Seats
• Power Outlet
• Trip Computer
• Immobilizer
• Rear Defrost
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Cold Cranking Amps @ 0° F (2nd): 770
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 16.2
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4600
• Gross Axle Wt Rating - Rear (lbs): 9600
• Curb Weight - Front (lbs): 3586
• Curb Weight - Rear (lbs): 2457
• Gross Vehicle Weight Rating Cap (lbs): 14200
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4600
• Spring Capacity - Rear (lbs): 9600
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4600
• Axle Capacity - Rear (lbs): 9600
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.58 x 1.6
• Tires
• Front Tire Order Code: XHF
• Rear Tire Order Code: YHF
• Front Tire Size: LT225/75R16E
• Rear Tire Size: LT225/75R16E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 57.0
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 159.00
• Length, Overall w/o rear bumper (in): 266.70
• Width, Max w/o mirrors (in): 79.10
• Height, Overall (in): 82.90
• Overhang, Front (in): 39.70
• Front Bumper to Back of Cab (in): 98.70
• Cab to Axle (in): 100.00
• Cab to End of Frame (in): 168.50
• Ground to Top of Frame (in): 23.31
• Frame Width, Rear (in): 34.80
• Ground Clearance, Front (in): 7.60
• Ground Clearance, Rear (in): 7.00
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.20
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Summary

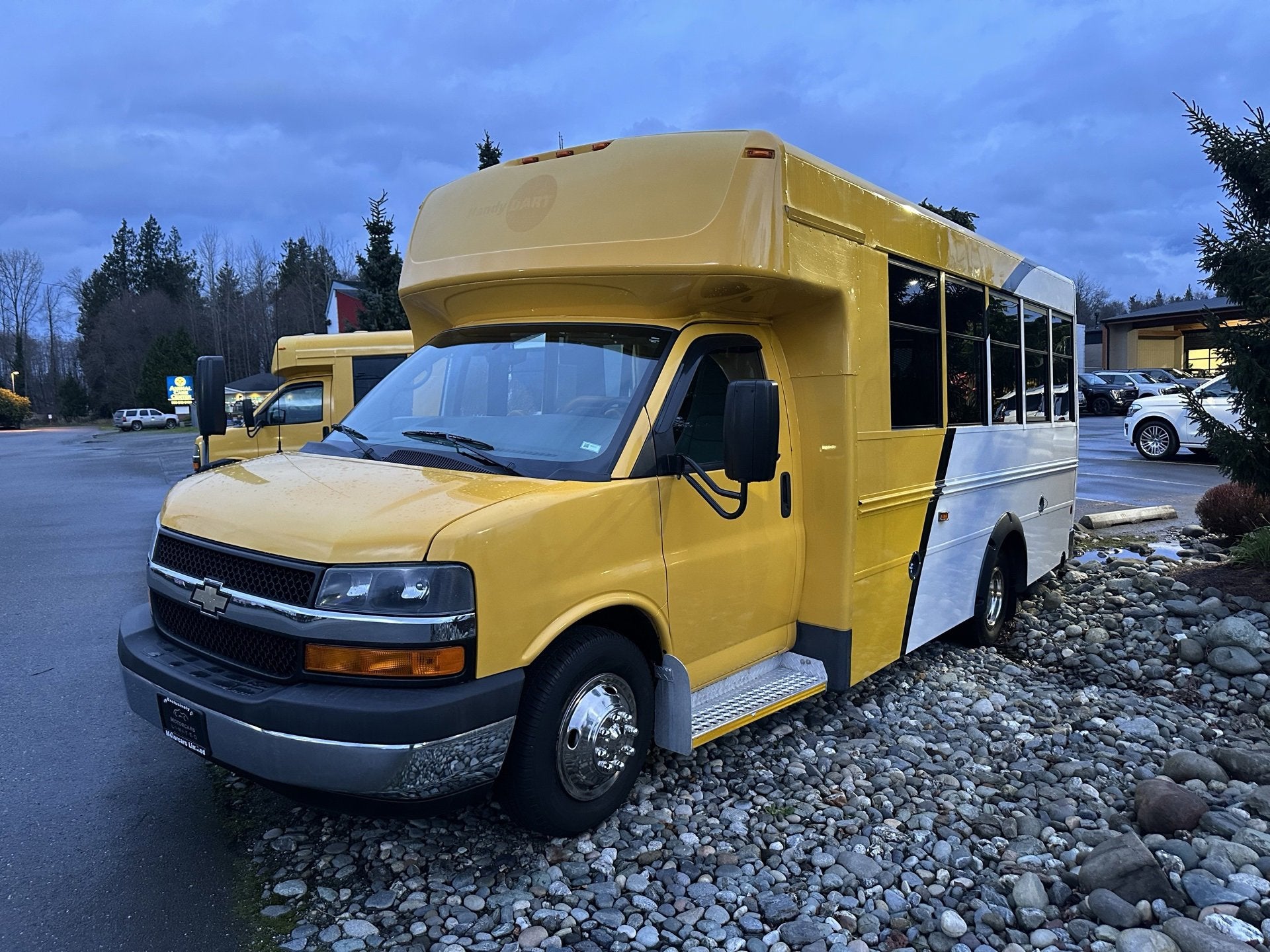

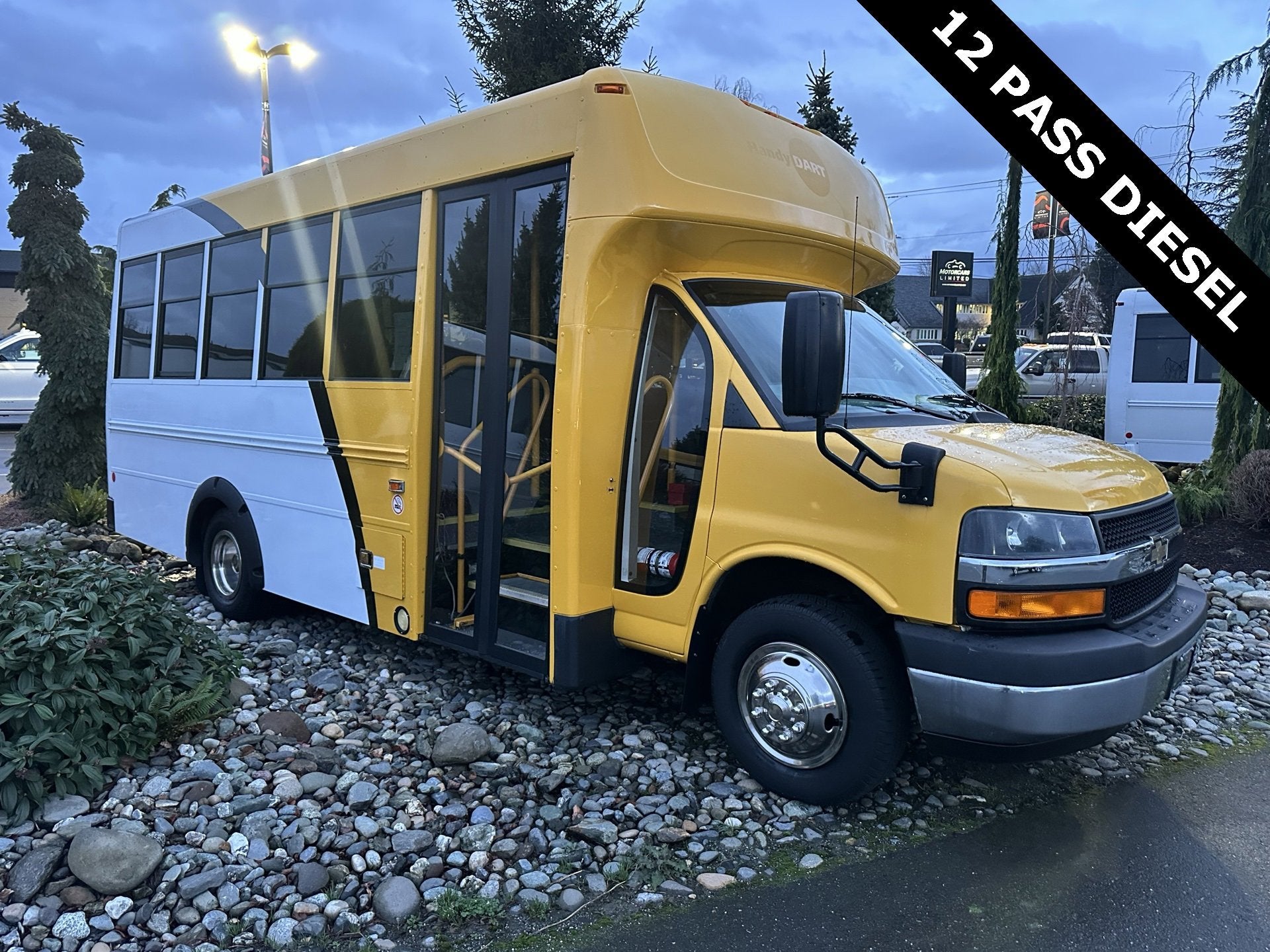

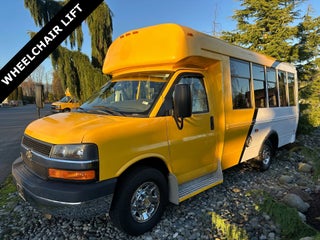

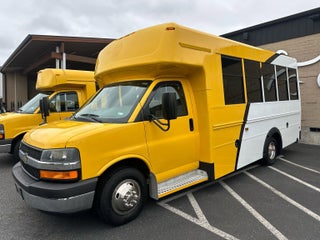

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Body Style: 159.0" WB
• Body Code: ZW9
